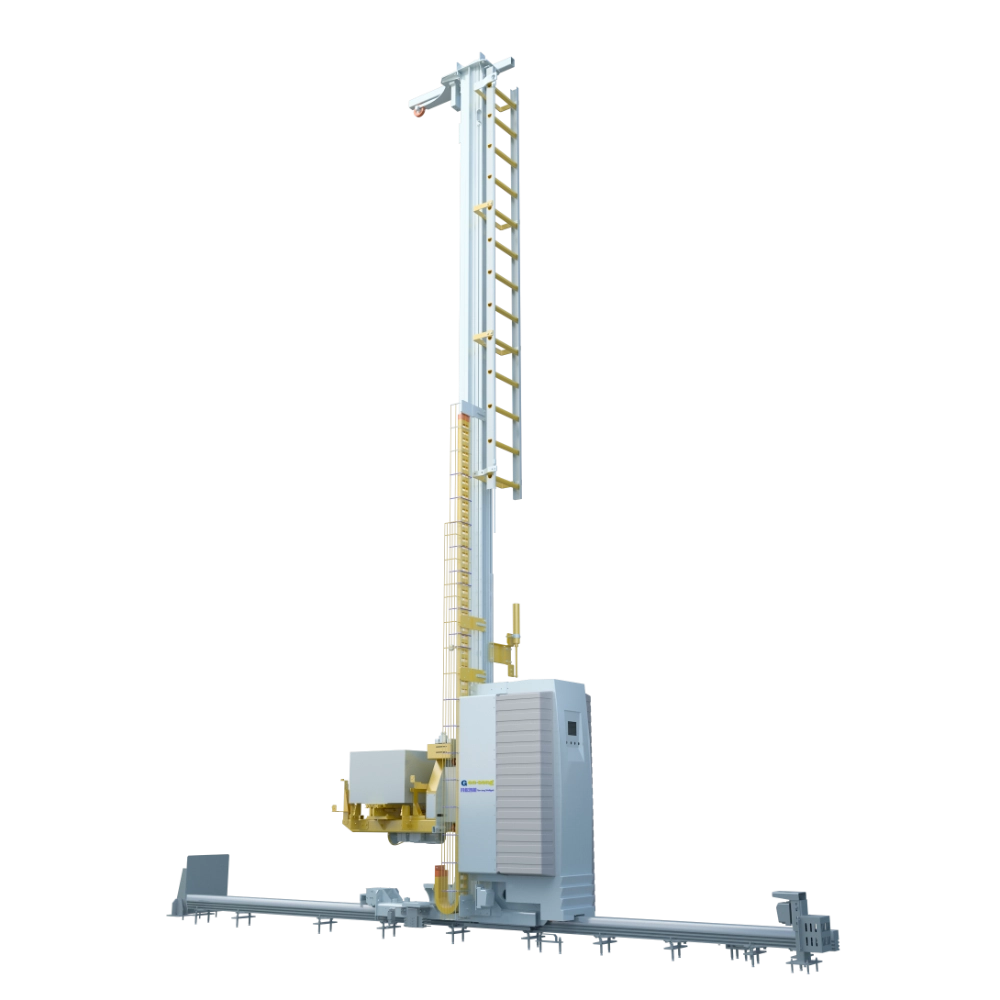

The Intelligent Single Column Stacker is a core material handling device in modern smart warehousing systems, designed for high-efficiency storage and retrieval of palletized or boxed unit loads. Fully customizable in design and manufacturing, it adapts to diverse industry needs and project specifications. Flexible configuration options include unit load dimensions, weight capacity, mast height, extension positions, workstation interfaces, and track layouts (straight or curved), ensuring seamless integration into any operational environment.
Features:
Compact Structure & Light-Duty Capability
As a single-column pallet stacker crane, this model features a space-saving single-mast design with a maximum working height of 8.5 meters and a load capacity of up to 100 kg. It is specifically engineered for light-duty storage and retrieval tasks involving small pallets, trays, cartons, and electronic components.
Flexible Fork Configurations for Diverse Rack Layouts
This warehouse stacker crane for AS/RS supports both single and double extension plate forks, allowing seamless adaptation to varying rack depths and storage density requirements. The flexible configuration ensures optimal space utilization and operational efficiency across different warehouse layouts.
High-Speed Horizontal Travel with Load Stability
Travel speed reaches 140 m/min with load and 160 m/min without load, backed by a smooth acceleration of 0.5 m/s². This enables rapid inter-aisle movement while effectively minimizing load sway—a critical advantage for any automated warehouse stacker crane solution handling sensitive or precision goods.
Efficient Vertical Lifting for Precise Positioning
Lifting speed is rated at 40 m/min with load and 45 m/min without load, with a controlled lifting acceleration of 0.5 m/s². This ensures stable vertical movement and accurate positioning at any rack level, enhancing overall system reliability in single column stacker crane system operations.
Precise Fork Travel for Accurate Pick-and-Place
The fork mechanism delivers a travel speed of up to 40 m/min with an acceleration of 0.5 m/s², enabling consistent, repeatable, and gentle load handling. This precision reduces impact on both the unit load and the rack structure, extending equipment service life.
