Product Introduction
Product Parameters

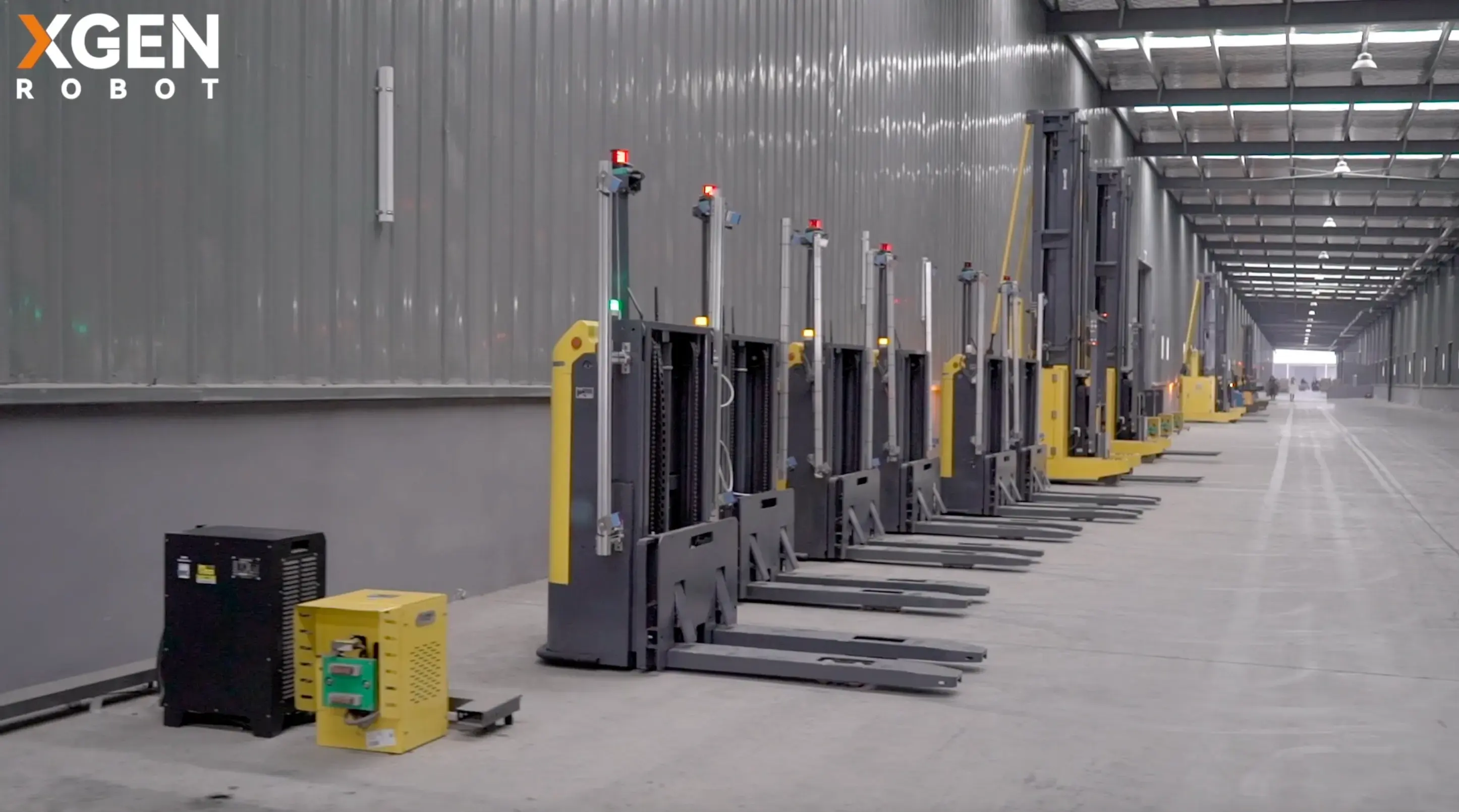

The Narrow Aisle Stacker FMR adopts the steering wheel drive system, which has the advantages of a simple structure, reliable use, a small turning radius, strong driving force, good vehicle stability, and high cost performance.

Equipped with a hydraulic jacking mechanism, it can handle loads up to 2 tons and lift heights of up to 3.5 meters. The compact body can easily navigate narrow aisles, greatly reducing site constraints, can be docked with a variety of conveying equipment for transportation, and has good scene adaptability.

Features

Used in Narrow Aisle, Fast & Stable

Flexible in Multi-vehicle Coordination

Multiple Navigation, Safe & Reliable

Customized Deployment, Intelligent & Efficient

Standard + Customization, Multi-scenario Use

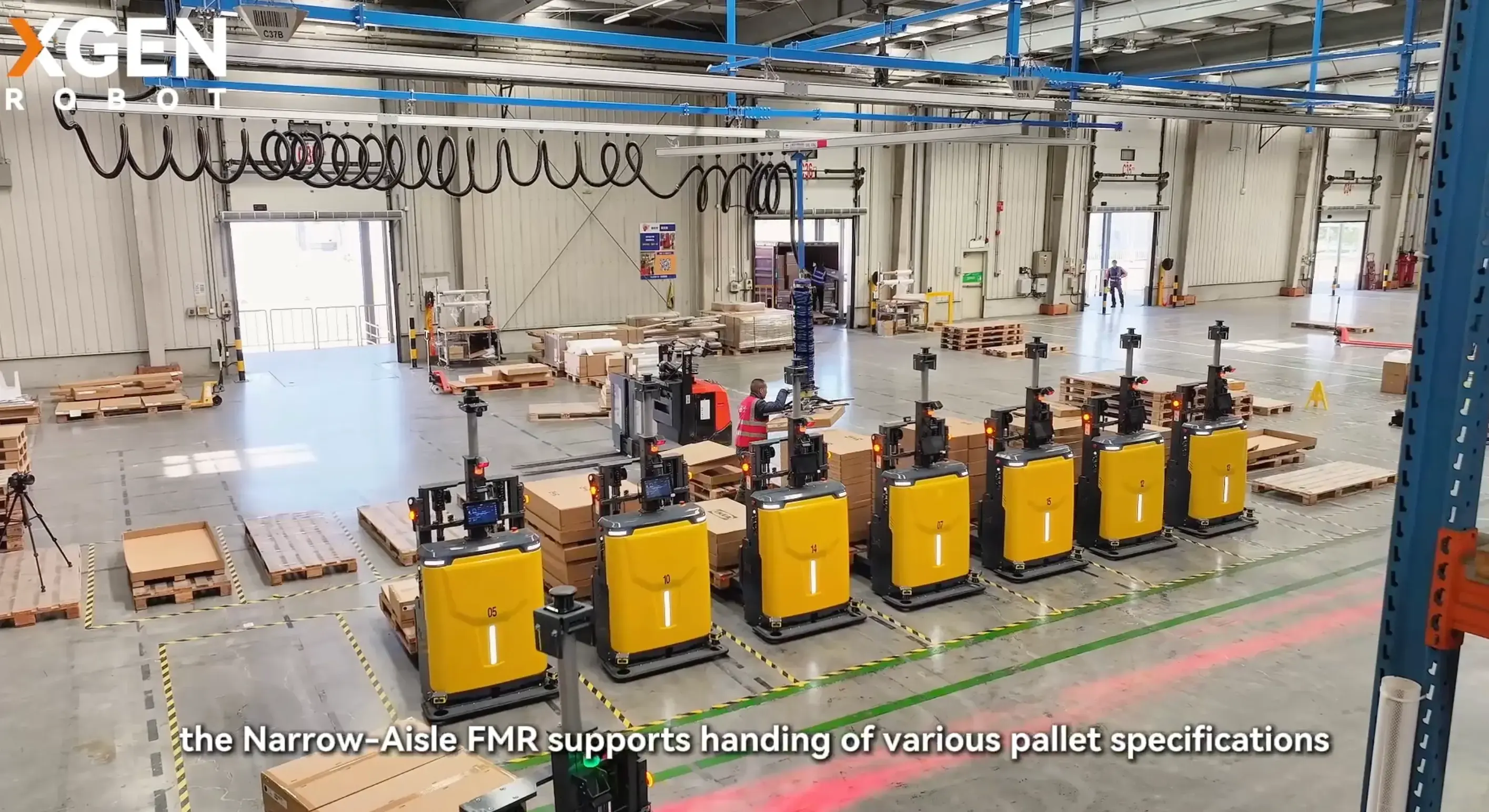

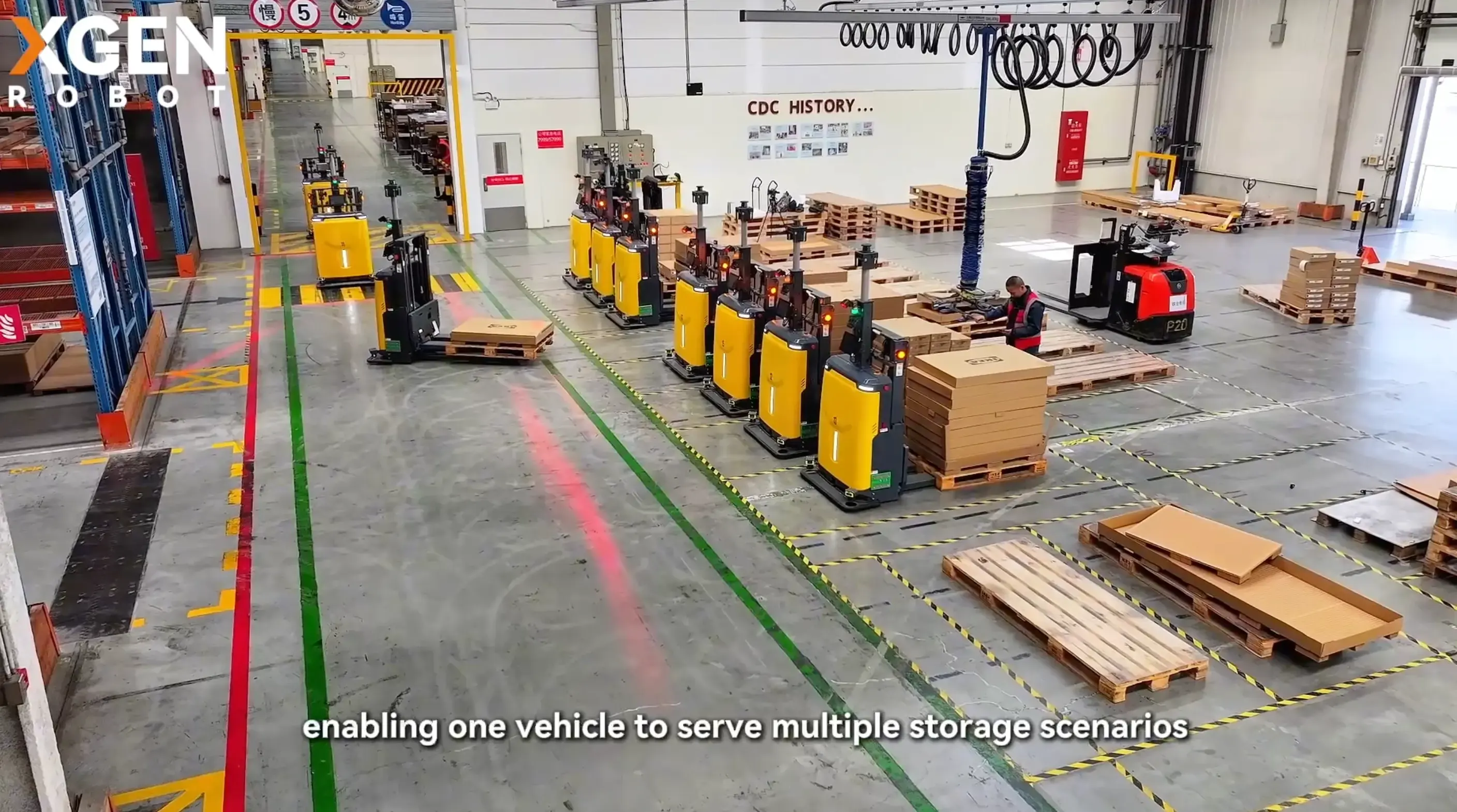

Narrow-aisle FMR realizes seamless warehouse-to-dock delivery. Powered by a connected WMS & robot dispatching system plus PDA scanning, it autonomously picks goods from conveyors and delivers materials to dock staging areas, then triggers counterbalance FMR for outdoor transfer to build an end-to-end automated logistics loop.

TECHNICAL PARAMETERS ● Standard O Optional -Not available
Basic Parameters	Model No.		X1-NS10	X1-NS15	X1-NS15P	X1-NS20	X1-NS15CE
	Load Capacity	kg	1000	1500	1500	2000	1500
	Load Center	c(mm)	600	600	600	600	600
	Weight(incl./Battery)	kg	830	830	900	1026	900
	Fork L×W×H	16es(mm)	117018065	117018065	117018065	117020065	117018065
	Fork Outer Spread	b5(mm)	670/570	670/570	670/570	690/590	670/570
	Fork Inner Spread	b4(mm)	310/210	310/210	310/210	290/190	310/210
	Max. Lift Height	h2(mm)	2000	2000	2000(standard) 12500/3000/3500	2000(standard) /2500/300/3500	2000(standard) 12500/3000/3500
	Mast Lowered Height	h1(mm)	1543	1543	1543(standard) /1793/2043/2293	1731(standard) /1981/2231/2481	1543(standard) /1793/2043/2293
	Max.Overall Height(Navigator Top)	h1'(mm)	2000-2350	1990-2260	2000-2350	2323-2676	2000-2350
	Overall Length(incl./Forks)	11(mm)	1766	1766	1766	1799	1844
	Body Width	b1(mm)	950	950	950	989	1052
	Min.Ground Clearance	m2(mm)	28	28	28	10	28
	Min.Turning Radius	Wa(mm)	1310	1310	1320	1420	1439
	Wheel Qty,Drive/Load(X=Drive Wheel)		1X+2/4	1X+2/4	1X+2/4	1X+2/4	1X+2/4
	Min.Safety Distance	a(mm)	200	200	200	200	200
	RA Aisle W(1000×1200 Along Fork,200mm Clr	)Ast(mm)	2380	2380	2390	2312
	RA Aisle W(1000×1200 Across Fork,200mm Clr)	Ast(mm)	2310	2310	2320	2282
	RA Aisle W(1200×1200,R800 Arc,200mm Clr)	Ast(mm)
	Charging Height	mm	250	250	250	300	250
Motion Performance	Drive Type		Steering Wheel
	Motion Mode		Forward/Backward,	Curved TumingSpot Rotation
	Rated Speed(Ful/No Load)	m/s	1.2/1.5	1.2/1.5	1.5/2	1.5/2	1.5/2
	Max.Grade (Ful/No Load)	%	3/5	3/5	3/5	3/5	3/5
	Positioning Accuracy	mm	±10	±10	±10	±10	±10
	Angular Accuracy	。	±1	±1	±1	±1	±1
	Lift Speed(Full/No Load)	mm/s	80	80	80	103	80
	Lower Speed(Full/No Load)	mm/s	60	60	60	80	60
	Lift Height Accuracy	mm	±5	±5	±5	±5	±5
	Wired Encoder		●	○	○	●	○
	Cylinder End Cushion		0	○	○	○	○
	Electronic-Soft Lift/Lower		-	-	-	-	-
Battery Performance	Rated Voltage	V	24	24	24	48	24
	Battery Capacity	Ah	100	100	150	100	90
	Battery Low-temp Heat		●		○	●	○
	Charging Cycles		Full Charge and Discharge≥3000 Times
	Rated Runtime	h	4-6	4-6	8	8	4-6
	Charging Time(30-90%)	h	L	1	1		1
	Charging Method		Side Charging
Safety Protection	Front Single LiDAR Obstacle Detect			●	●	-	○
	Front Dua LiDAR Obstacle Detect		○	○	○		○
	Cargo Placement Detect		●	○	●	○	●
	Pallet Pickup Recognition		●	○	○	○	○
	Weighing Module		-	-	-	-	-
	Dashcam		○	○	○	○	○
	Bumper Edge Detect		●	●	●	○	●
	Pallet In-position Detect		●	○		○	○
	Fork Tip Photoelectric Detect		●	○	○	○	○
	Top Anti-collision		○	○	○	○	○
	Left/Right E-Stop			○	○	○
	Tri-color &Audible Alarm		○	○		○
Others	3D LiDAR SLAM		●	○	○	○
	Visual SLAM Hybrid		○	○	○	○	○
	10"Display		○	○	○	○	○
	Handle Control		-	-	-	-	-
	Wired Controller		○	○	○	○	○
	Mobile APP		○	○	○		○
	RFID Reader		○	○	○	○	○
	Working Noise	dB	≤75	≤75	≤75	≤75	≤75

Video

FAQs

What lifting heights and payload capacities does the X1-NS series offer?

The X1-NS series features a highly versatile model line-up to match varying warehouse requirements, handling heavy-duty industrial loads up to 2.0 tons (2,000 kg). The standard maximum lifting height is 2,000 mm, with flexible, customizable options expanding up to 2,500 mm, 3,000 mm, and 3,500 mm to accommodate standard high-bay racking.
What are the motion speeds and structural positioning accuracies of these robots?
The X1-NS series delivers superior warehouse material throughput with zero compromise on precision:
- Rated Travel Speed: Reaches up to 1.5 m/s for standard models and an impressive 2.0 m/s (unloaded) for the X1-NS15P/NS20 performance editions.
- Positioning Accuracy: Guarantees a robust structural docking precision of ±10 mm horizontally, with an angular accuracy of ±1° and a vertical lifting precision of ±5 mm.
Can the X1-NS series connect with other automated facility equipment?

Absolutely. Thanks to our advanced fleet management software and flexible software APIs, the X1-NS series boasts exceptional scene adaptability. It can be seamlessly docked with multiple types of material handling equipment, such as roller conveyors, chain transfer systems, automated palletizers, and cargo elevators, providing a fully integrated end-to-end intralogistics workflow.
